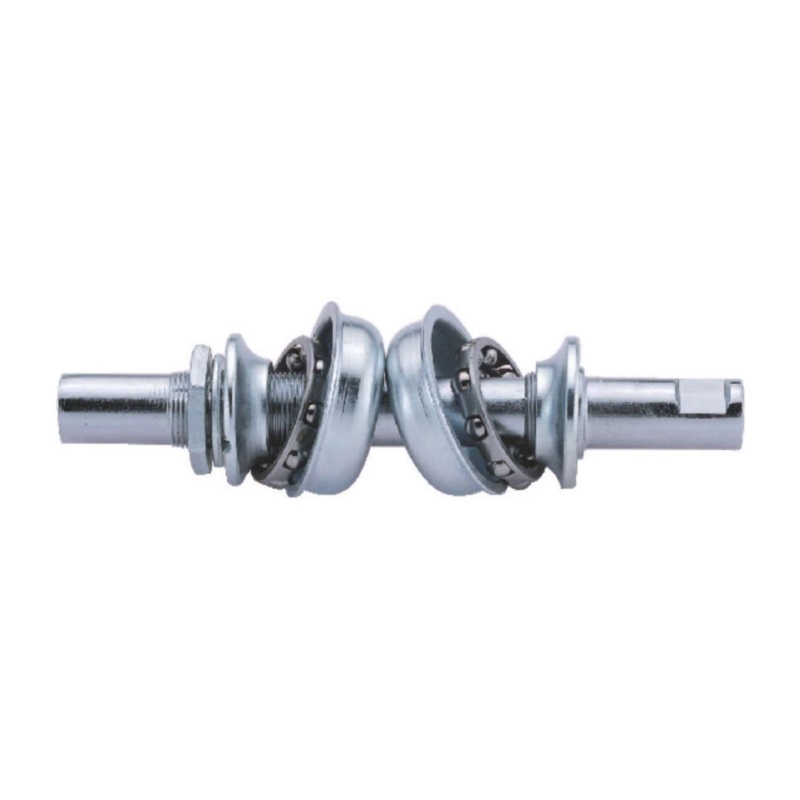

CH-120(3717) / (3720)

CH-120(3717) / (3720)



A1.BP017S3717-Cup c35mm2
BP020S3720-Cup c40mm(2)
B1.BC21203717-Left Cone 35mm1
BC21213720-Left Cone 40mm(1)
C.NS10Hex Lock Nut 4×25.5×16.5mm1
D.BW120ATap Washer 2.0mm1
F.BR608G053717-Ball Retainer 3/16″ x112
BR610G053717-Ball Retainer 1/4″ x9(2)
G.BSS1203717_Dust Cup 35mm (Option)(1)
BSS1213720_Dust Cup 40mm (Option)(2)
H.ACB3717Cottered Axle pin Type Threaded 150L1



Deskripsi

Sets             9/10 pcs (Dust Cup Optional)
Rotator       Ball Retainer
For               Bicycle 5-7/8″
Material      Steel
Finish          CP/UCP
Weight        412 ± 2g (Axle-240 / Cups-174) CH-120 / 3717
